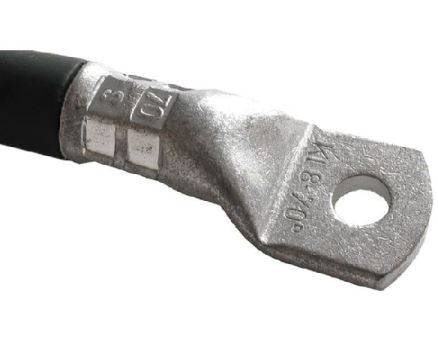

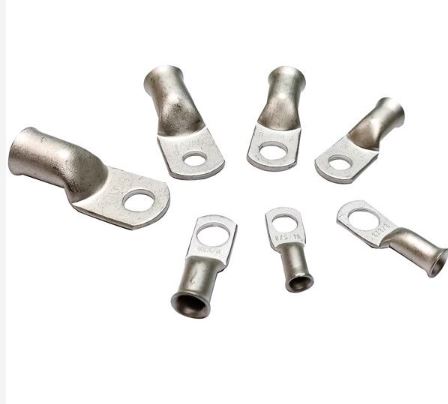

An efficient hydraulic crimping tool for the assembly of cable lugs made of aluminum and copper on electrical equipment and batteries. High pressing force automatically regulated during each assembly. The rotated press head allows easy access for mounting even in tight spaces. Various pressing blocks are included.

Features:

• C-shaped crimping tool head, with safety features, manually operated.
• 4mm-70mm Hydraulic Crimper.
• Secure and convenient tensioning.
• The compression pliers are designed for hydraulic crimping on power cables, battery cables, etc.
• Quickly replaceable pressing blocks/heads in various dimensions.
• Automatic variable hydraulic pressure, compression force switches automatically.
• The head can be rotated 180 degrees for optimal function in tight spaces.
• Open-cut design for easy operation, saving your energy and time.
• Built-in overpressure safety valve to protect the crimping tool.

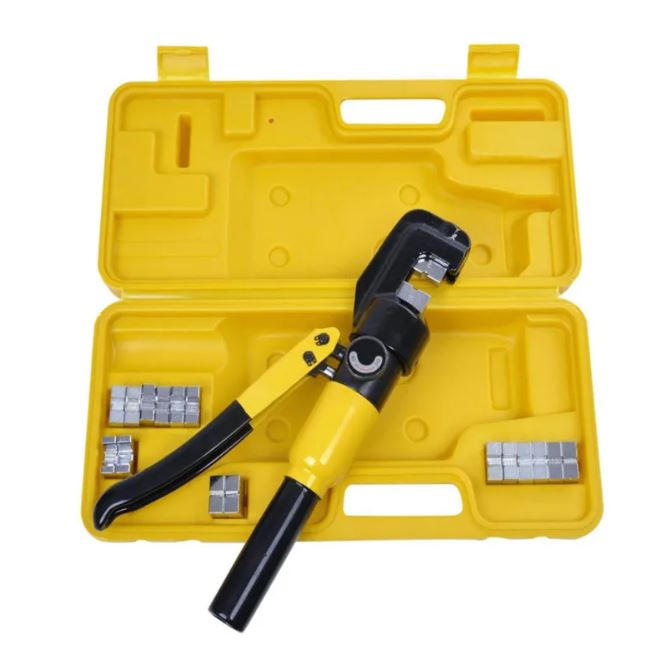

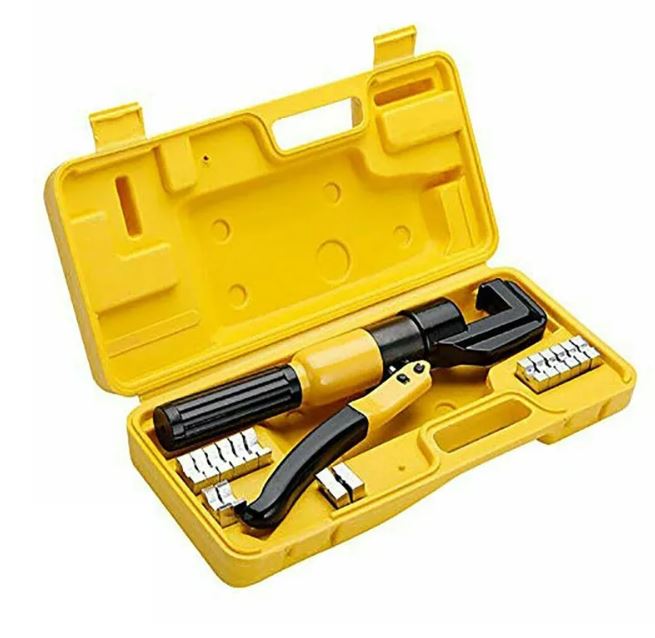

• Crimping tool and storage box included.

Specifications:

• Material: 45 Carbon Steel

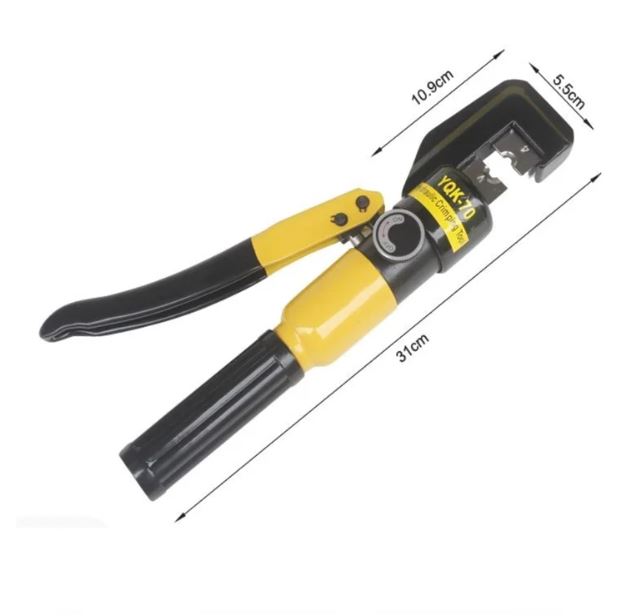

• Overall dimension: Approx. 300 x 95 x 65 mm
• Crimping force: 8 tons
• Stroke per press: 12mm
• Rotation of the press head: 180 degrees
• Crimping range: Cu: 4–70 mm2

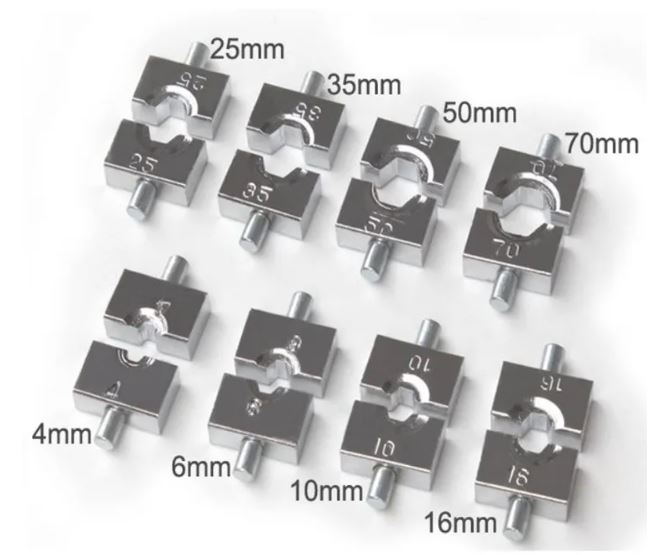

• Included crimping dies: 4/6/10/16/25/35/50/70 mm
• Weight: 3.5 kg/6.6 lbs

Package includes:

1 X Hydraulic Crimper + 8 pairs of crimping dies
